Reminded General Printable Rfid Led Tag With High Frequency

LED Reminded General Printable HF led light tag

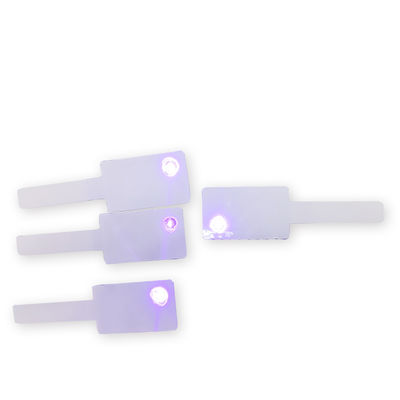

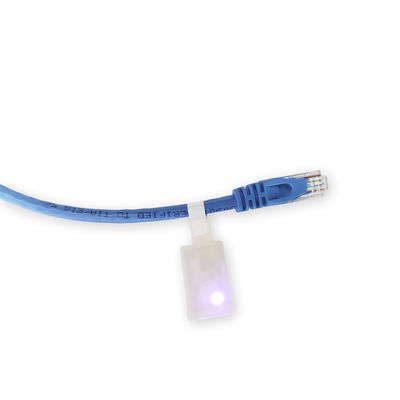

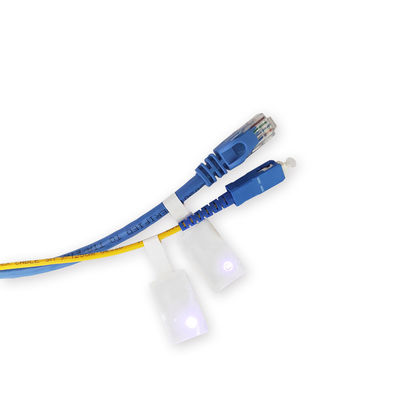

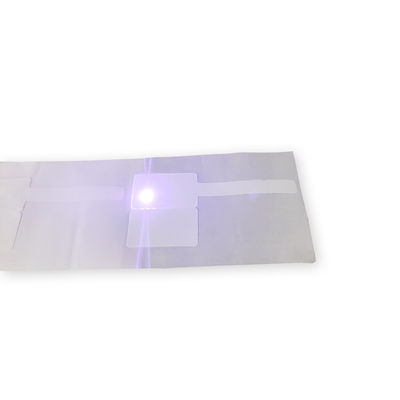

YURI RFID High Frequency Flashing Object Tag is a new practical electronic tag developed on the basis of the original flashing light card/tag with both appearance and object searching function. It is widely used for searching books and archives, searching for cable and wire maintenance, etc. A single tag flashes to find objects, or multiple tags can flash to find objects at the same time. After the relevant equipment in the archives room is connected, the staff only need to send simple instructions to the reader to operate the tags, find the relevant archives and light up the LED lights. Can greatly reduce the time to find files. When used in the field of tobacco and alcohol, the authenticity of the product can also be judged based on the disconnection of the detection line. Greatly reduce people's worries about the authenticity of products when buying high-end tobacco and alcohol!

Product features of high-frequency flashing light finder tag:

RF interface

Communication protocol: ISO/IEC15693

Operating frequency range: 13.56MHz

Anti-collision mechanism in compliance with the agreement

Fast anti-collision access mechanism

Data integrity: 16bits CRC

The fastest transmission rate: 53Kbps

EAS (electronic anti-theft) function

AFI (application category can be defined) function

DSFID (data storage format can be defined) function

EEPROM memory

The total capacity is 1Kbits, divided into 32 blocks, and the size of each block is 4Bytes

32 Blocks (1Kbits) configurable data area, which can be divided into safe data area and non-safe data area according to needs

The secure data area is protected by a password, you need to verify the password before you can access

Data storage time: more than 50 years

Erase and write times: more than 100,000 times

Safety features

Each chip has WEI-UID information, UID cannot be rewritten

OTP locking mechanism based on block. Once locked as read-only, it can no longer be unlocked as writable

Supports DSFID, AFI and EAS lock EAS/AFI password protection function

Support password control memory read and write authority function, the capacity of the security data area can be configured

Support private mode Support inactivation, the label after inactivation will no longer respond to any instructions, the inactivation function can be configured to be disabled
